Specifications
BIKE TYPE | Mountain Bike |
MATERIAL | 6061 aluminum and Iron |
MODEL NAME | MT001 |
ORIGIN | China |
Product Features
- ARC MT001 has 32 and 36 holes and is compatible with 6-bolt disc brakes
- It has 4 NBK high quality bearings.
- Fits mountain bikes 100mm front and 135mm rear
- This hub fits a shimano HG 8 9 10 11 speed cassette.
- ARC MT001 flange is made of aluminum alloy CNC, and the shaft is made of iron.
Product Description

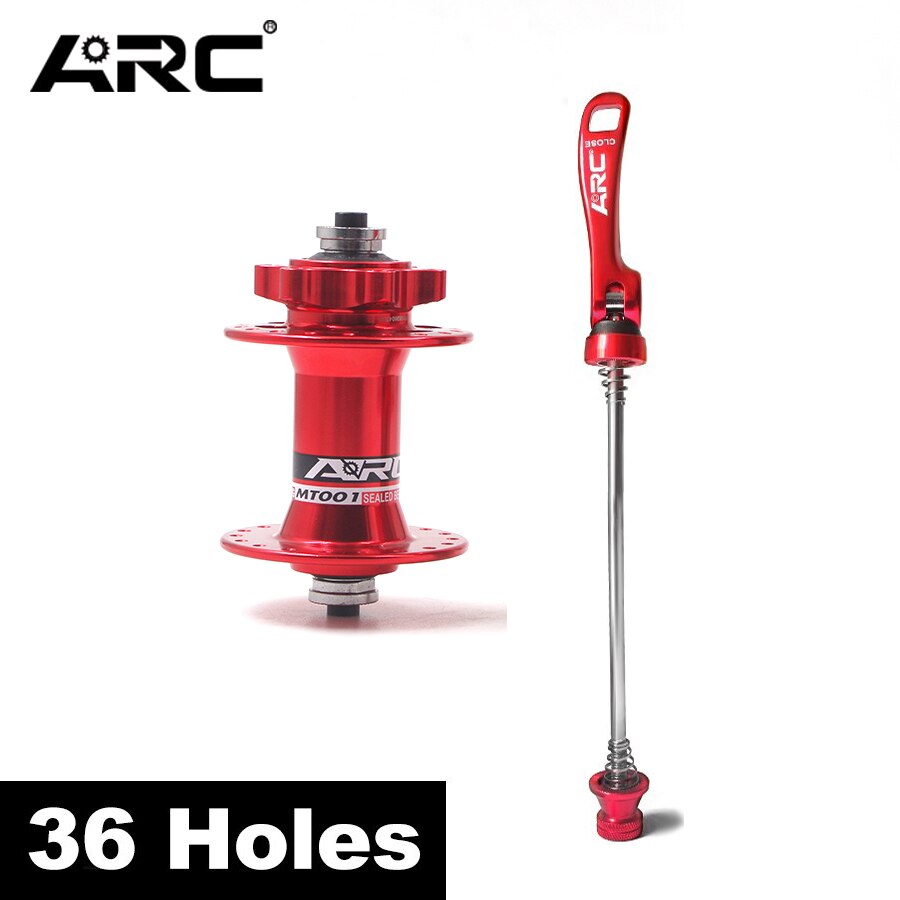

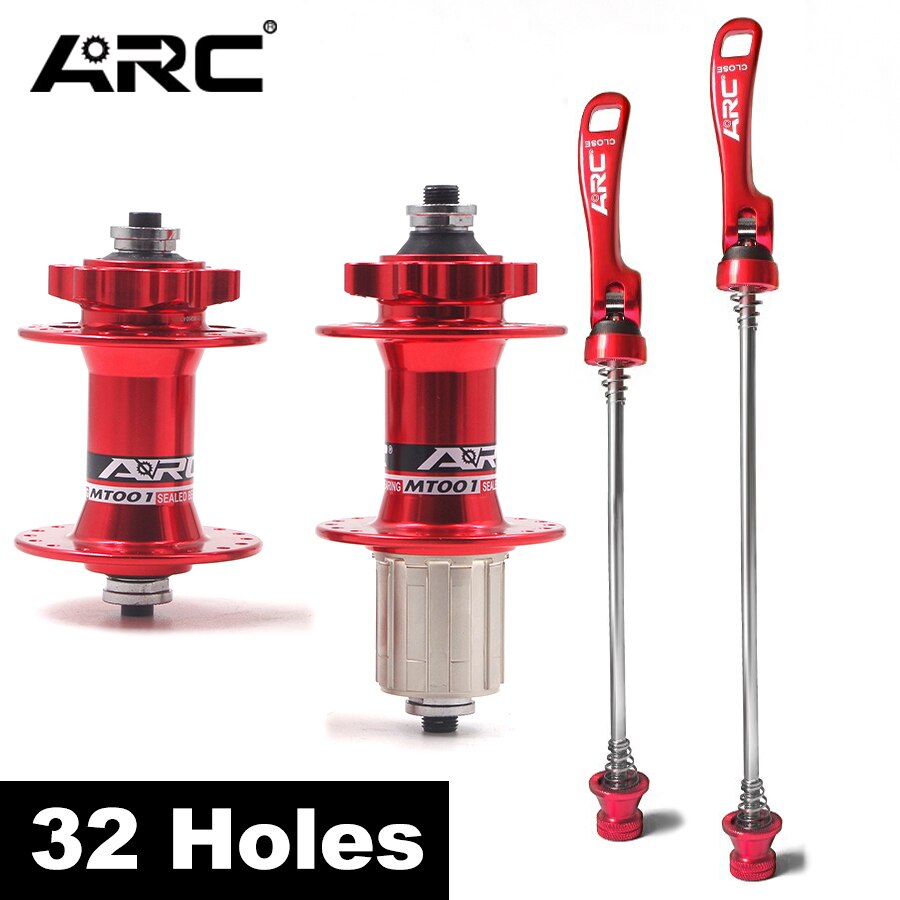

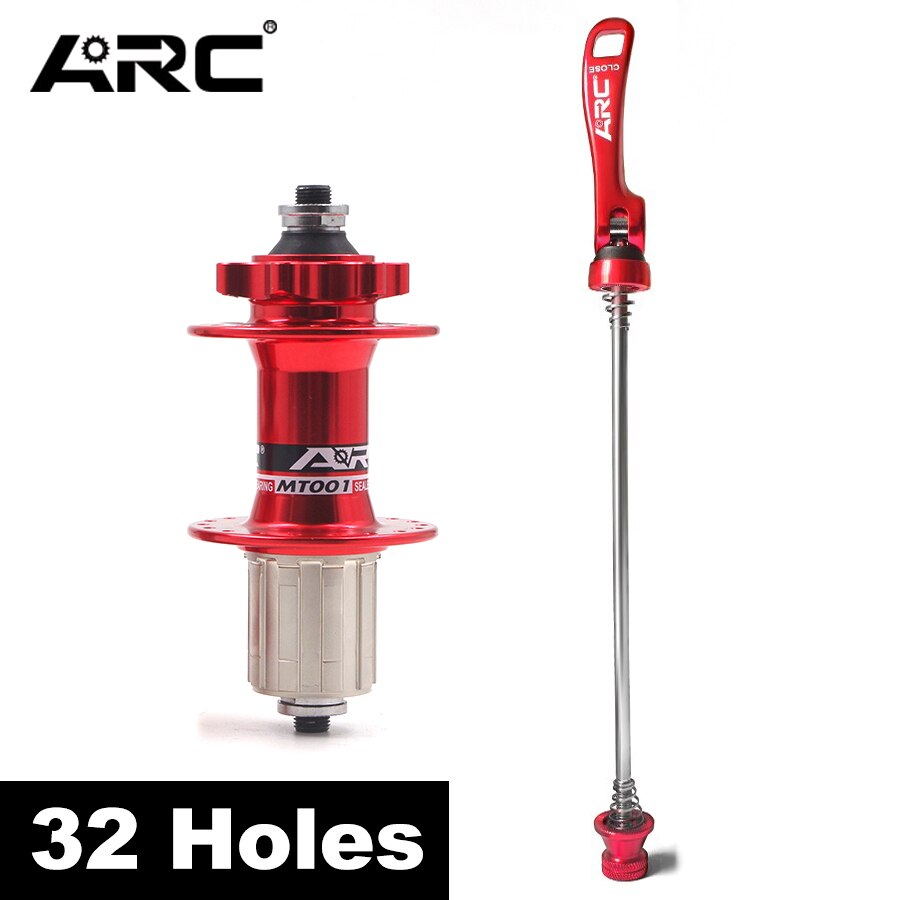

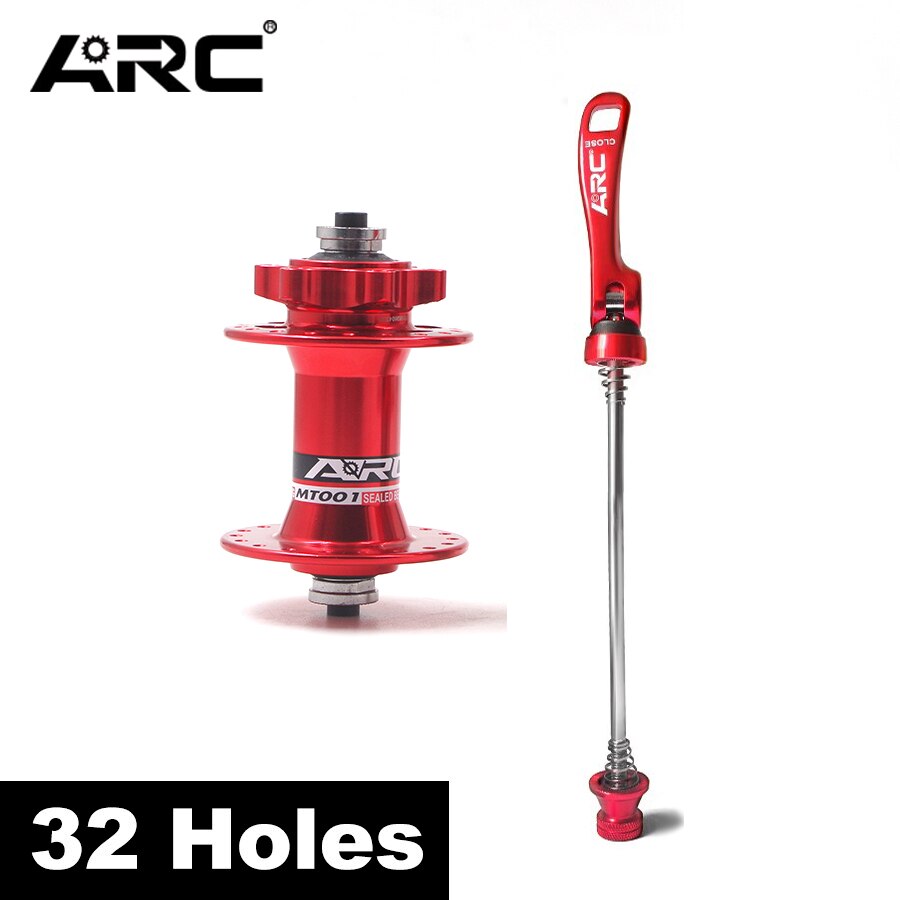

ARC MT001 mountain bike quick release hub is an entry-level style. Its advantages are low price and good quality. The hub is made of 6061 aluminum alloy flange and iron shaft and steel freehub, front hub and rear hub There are 2 bearings, which are suitable for the front 100mm and rear 135mm bicycle frames.

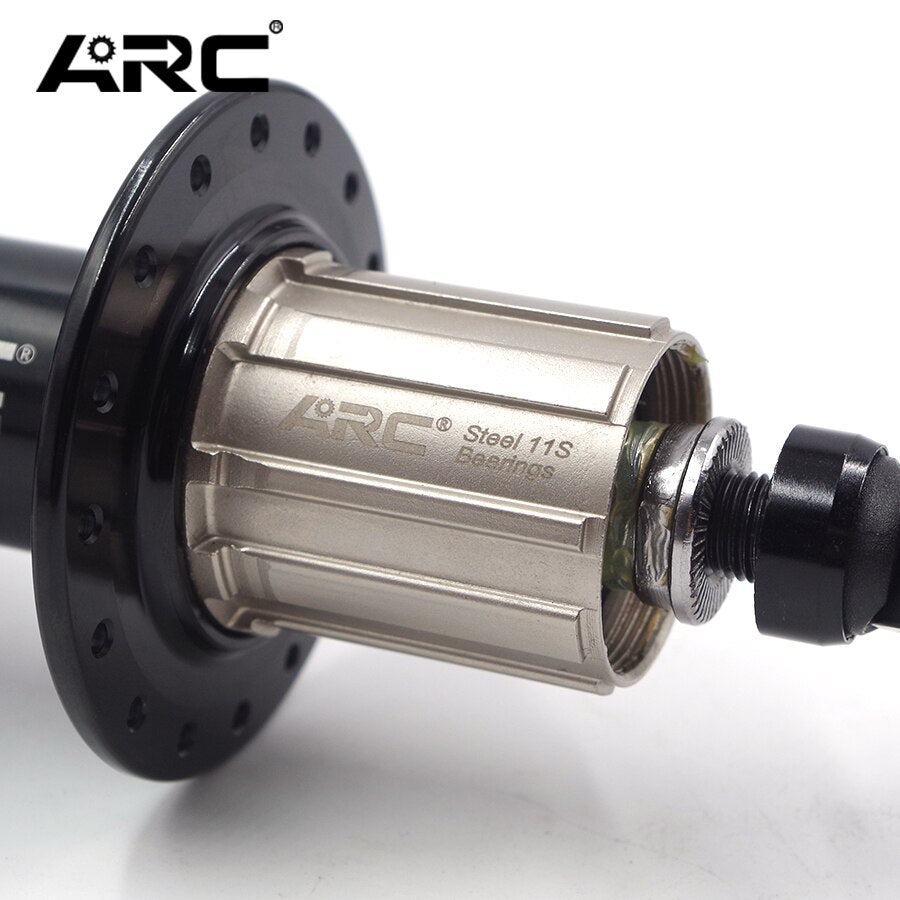

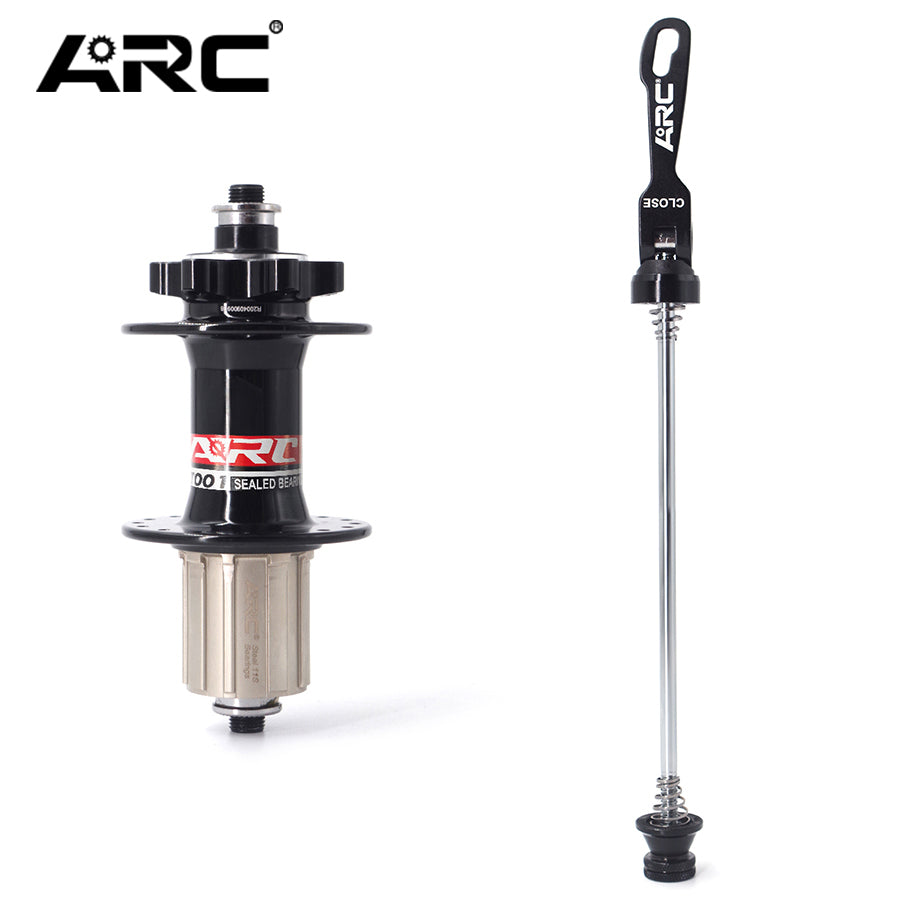

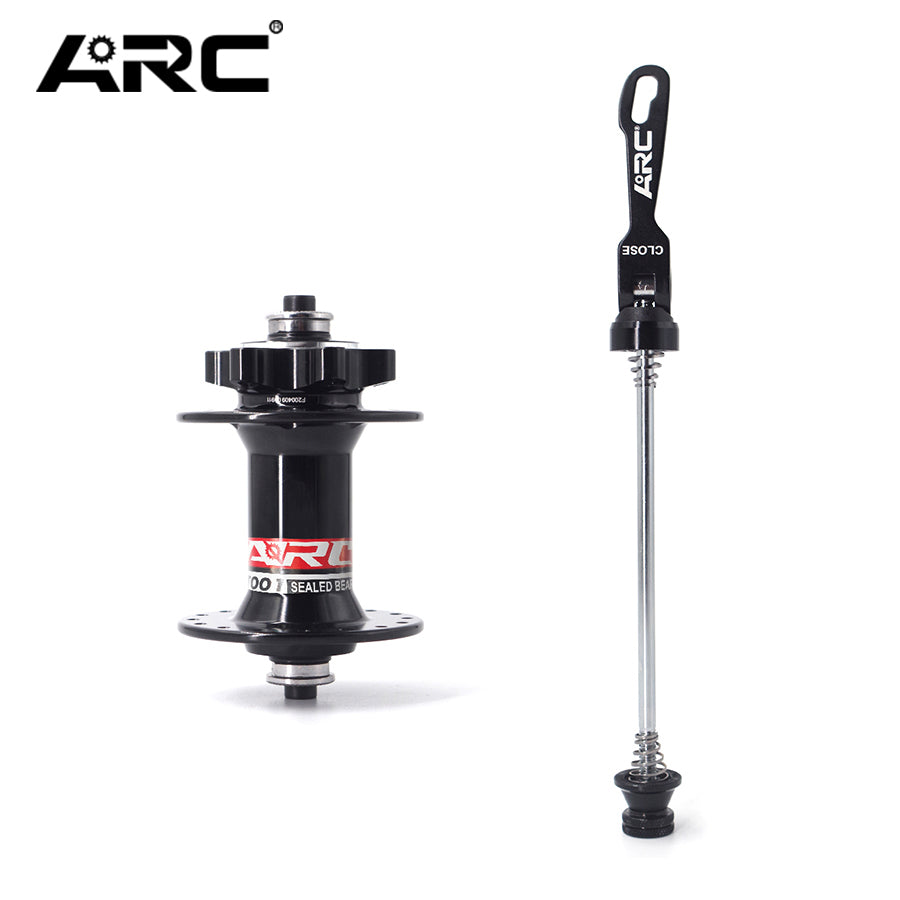

MT001 has two colors (red, black) and two holes (32 holes, 36 holes) to choose from, compatible with 6-bolt disc brakes, flange compatible with 14g elbow spokes, freehub compatible with Shimano 8 9 10 11 speed cassette, freehub 36 click sounds (3 claws and 1 tooth).
- Sealed Bearings: Taiwan NBK(4 piece)
- Material: AL6061-T6, Steel
- Spoke: 14g

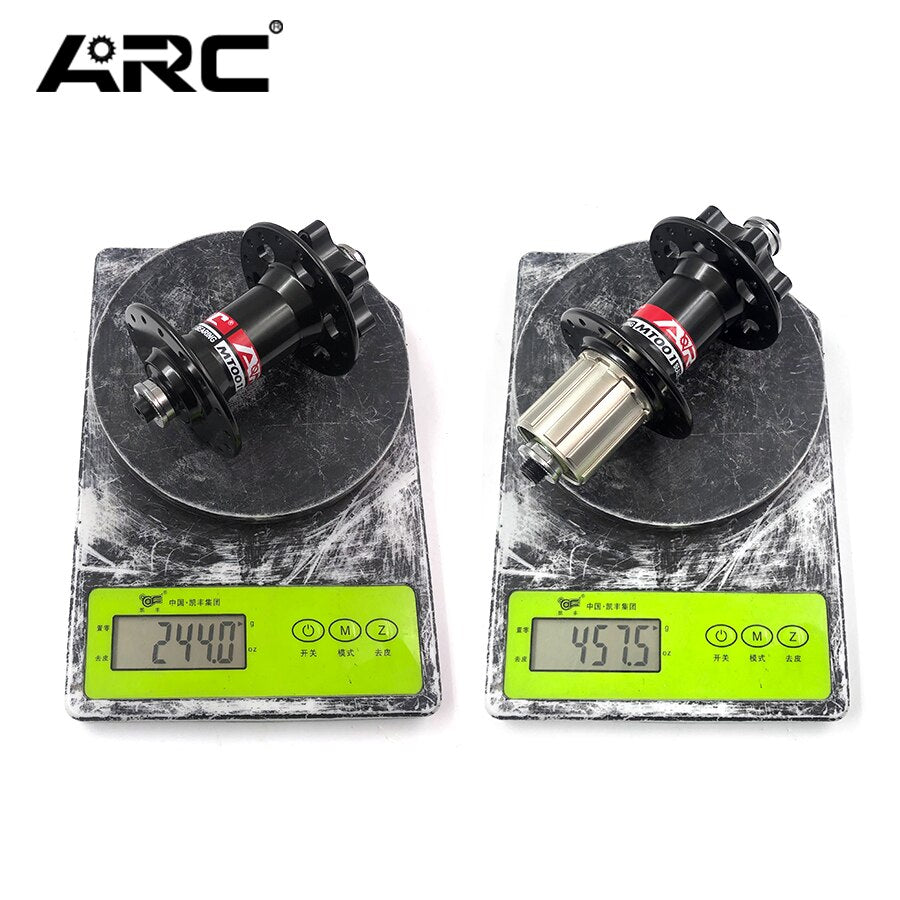

- Weight: Front - 230g, Rear - 453g

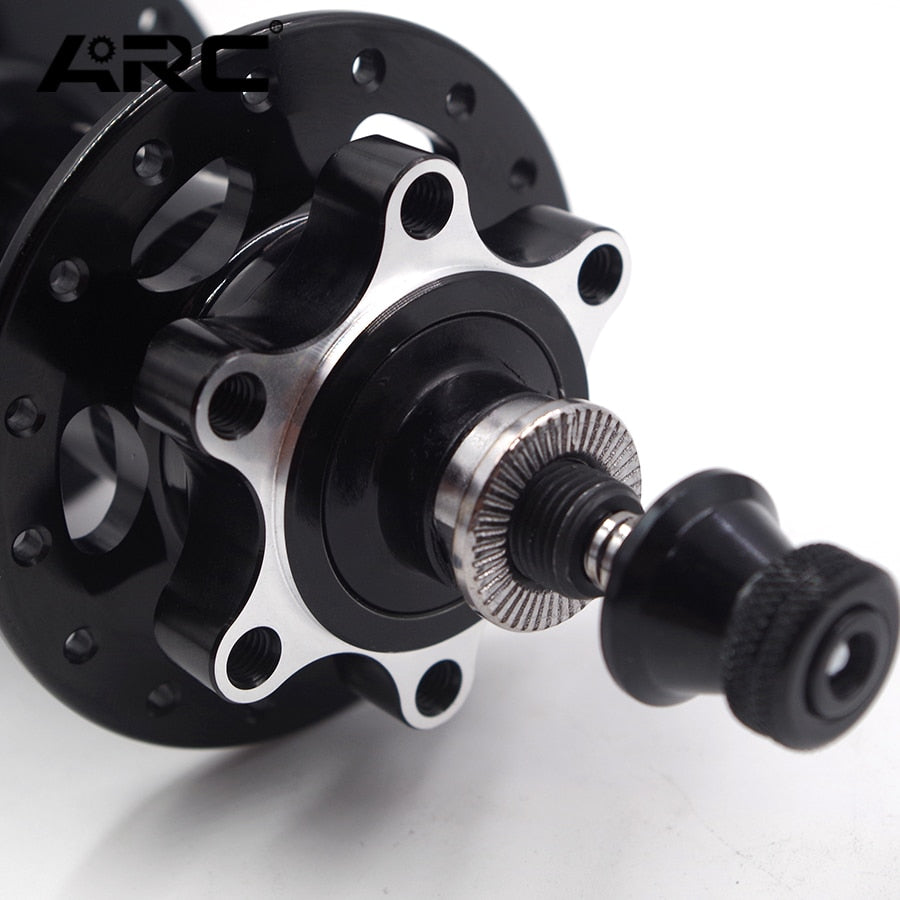

- Brake: 6 - Bolt Disc Brake
- HG-Cassette: Shimano 8 9 10 11 speed
- Front O.L.D: 100mm
- Non-gear side to flange: 26.7mm
- Gear side to flange: 14.4mm
- Flange diameter: 58mm
- Rear O.L.D: 135mm
- Non-gear side to flange: 31.5mm
- Gear side to flange: 47mm
- Flange diameter: 58mm
Collapsible content

Guideuse
If you have any questions about how to operate and use the product, please contact us or check the instruction manual for help. If you don't have any experience installing it, we recommend that you have your local bike shop fit your new product.
Warranty
12 months warranty
